Level Up with Advanced Cutting Technology
The Summa S Class 3 not only masters precision and versatility, but it also proves to be a durable workhorse built to last. Constructed with premium materials, it can withstand heavy use while delivering consistent, high-quality results day in, day out. From vinyl cutting to precise digital die-cutting and plotting on various materials, the S Class 3 is a true do-it-all cutter, catering to a myriad of creative needs. It is your ultimate choice for handling expensive foils and valuable vinyl prints with precision and reliability. Prepare to elevate your cutting endeavours to new heights of excellence with European craftsmanship. Place your trust in the S Class 3 cutters, and you’ll never look back.
Key Features
S Class 3 tangential and drag-knife cutters pave the way for cutting excellence through an efficient and productive workflow. A broad range of integrated and optional features take your cutting workflow and operator comfort to the next level.
True Tangential Cutting Technology
The highly-engineered tangential cutting heads on the S Class 3T Series have a unique motorized knife, allowing the cutters to achieve unparalleled accuracy and precision down to the smallest details. Our True Tangential cutting technology even handles heavy sandblasts, paint masks, and reflective materials.
Smart Object Sorting and Paneling
The Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, e.g., set to 18in, all objects within this range are cut at once.
Summa GoSign Software
Our powerful in-house GoSign software allows you to manage your preferred workflow straightforwardly and with great flexibility.
Fast and Accurate Cutting with OPOS CAM (S Class 3 TC)
The new camera is more performant with even faster recognition abilities thanks to automatic data processing in the cutter instead of the external software. It allows you to excel with extremely fast and precise cutting of short or long-run contour-cutting jobs.
Dual Head Functionality (S Class 3 TC)
The S Class 3 TC models are the most advanced cutters of the S3 Series. Their high-precision cutting head can now carry two tools at once. This allows you to cut and crease or cut and draw without changing tools.
https://www.summa.com/media/ivffg2b2/202308-roll-cutter-brochure-met-s-class-3-english-us-web.pdf
Specifications

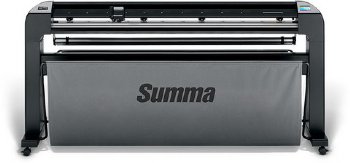

MODEL S3D160
DIMENSIONS 88.6 x 27.7 x 43.8 in
MEDIA WIDTH 6.6 to 66.1 in
CUTTING WIDTH 66.1 inch (168 cm)
MAX. WORKING WIDTH 62.2 in x 164 ft 'Oversized' mode allows a wider cutting area: +/2.8 in
ALIGNMENT TYPE • OPOS X - OPOS Xtra • OPOS - CAM (factory upgrade) • Barcode job recognition • Up to 2 x 64 marks on the X-line • Y-Line compensation
TRACKING PERFORMANCE 40 ft max. within guaranteed specifications for media less than 30 in wide 13 ft max. within guaranteed specifications for media larger than 30 in wide
MEDIA THICKNESS 0.002 in to 0.01 in / Up to 0.03 in with sandblast drag knife / Up to 0.047 in with sandblast tangential knife
ACCURACY 0.2 % of movement or 0.010 in, whichever is greater
SPEED Up to 56 ips diagonal
ACCELERATION Up to 4.25 G diagonal
KNIFE PRESSURE: Up to 400 grams
EXTRA PEN OR CREASER PRESSURE Up to 1000 grams
OTHER FEATURES FlexCut (cutting through)
CONNECTIVITY Ethernet, USB, WIFI
POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz,85 VA maximum
INCLUDED SOFTWARE Summa GoSign Software, Summa Cutter Control / Plug-in: Illustrator, CorelDraw, MacSign
CUTTING TECHNOLOGY Drag knife / Tangential knife
DUAL HEAD Creasing tool / Fiber pen
DISPLAY LANGUAGES: English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
WEIGHT: 251 lbs (114 kg)
OPERATING TEMPERATURE: 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES: WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket.
WARRANTY: 2 year Warranty on Parts
*In ‘Oversized’ mode the tracking performance is no longer guaranteed.
