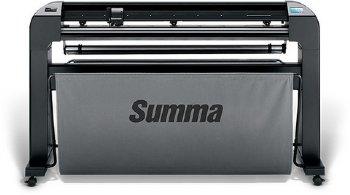

Summa S3T160 62 inch Tangential Vinyl Cutter

Summa S3T160 62 inch Tangential Vinyl Cutter
Summa S3T160 62 inch Tangential Vinyl Cutter
SKU: S3T160-2E
S Class 3 160 T-Series, 62" tangential knife cutter with integral stand and basket, OPOS X and sheet cut-off system.
Brand: Summa
Cutter Width: 62"
You can earn 11990 SIGN BUCKS on this product!
Price: $11,990.00
Product Details

Features




Legendary Tracking System

Summa's exclusive MicroSprocket drive drum, coupled with powerful servo motors, deliver jaw-dropping accuracy. Media is conditioned as it advances to assure spot-on tracking precision.


OPOS Contour Cutting Alignment





The automated contour alignment system OPOS stands for Optical Positioning System. The OPOS X sensor technology senses a minimum of 4 and a maximum of 128 marks on a wide range of materials. Some of its features include a fully-automated workflow, using OPOS barcodes, enabling you to contour cut multiple jobs without intervention.






Vibrant Color Touch Screen

The intuitively redesigned menu system and full-colour touch interface allow for effortless navigation. Tactile and easy to use, the touch screen displays large amounts of information in an easily accessible format.






Unmatched Die-Cutting Precision

Summa's unique FlexCut feature takes cutting technology to the next level. This adjustable feature creates a perforated cut that allows the material to retain the necessary rigidity to transport through the cutter while remaining easy to break apart into individual pieces.




Automatic Cut-off knife

The cutting head includes an automatic cut-off knife which can optionally be set as to slice your media at the end of the job.




Ethernet Connectivity

Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection - creating an all-new avenue for faster communication and data transmission speeds.




A Servo-powered Roll-up System for Summa S Class 2 140 and Summa S Class 2 160

After a job is finished, the system will roll up the artwork neatly and prepare the machine for the next unattended job. The integrated paneling feature splits long-length runs into shorter consecutive jobs.















Specifications


CUTTING TYPE: True Tangential with Drag Knife Cutting Mode Capability

CUTTING WIDTH: 62 inch (158 cm), (Extended Mode: width of the material)

CUTTING SPEED: All Summa S2 models cut at speeds up to 56 inches per second diagonal

AXIAL SPEED: Up to 4 G

ALIGNMENT TYPE
  • OPOS - CAM : Factory upgrade on all new Summa S Class 2 S160T
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation

MAXIMUM ACCELERATION: Up to 5.5 G diagonal

TRACKING PERFORMANCE:
Within +/- 0.004 in. (+/- 0.1 mm) on plots up to 40 ft. (12 m) long on rolls up to 760 mm wide
Within +/- 0.004 in. (+/- 0.1 mm) on plots up to 13 ft. (4 m) long on rolls over 760 mm wide

CUTTING FORCE: 0-600 grams of down-force, in 5 gram increments

DISPLAY LANGUAGES: English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese

CONNECTIVITY: USB, Ethernet

POWER REQUIREMENTS: 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum

DIMENSIONS: 225 (W) x 68 (D) x 111 (H) cm 88.6 (W) x 26.8 (D) x 43.7 (H) in.

WEIGHT: 251 lbs (114 kg)

OPERATING TEMPERATURE: 59˚ to 95˚F (15˚ to 35˚C)

STANDARD ACCESSORIES: WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket.

OPTIONAL ACCESSORIES: Roll-up system for Summa S Class 2 140 and Summa S Class 2 160
