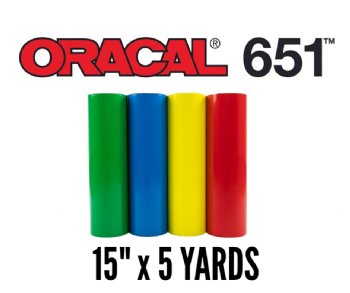

Oracal 651 Permanent Unpunched Vinyl 15" x 5 Yard

Description
High gloss, intermediate-performance specially optimized PVC film.

Release Paper
84# custom silicone-coated paper with special release characteristics that provide excellent weeding and release values. Customized blue silicone paper liner for matte white and gloss white provides superior contrast for cutting and weeding.

Adhesive
Solvent polyacrylate, permanent.

Areas of Use
Due to its special release characteristics, this product is ideal for use on computer-aided signmaking (CAS) equipment. Its special proprietary formulation ensures optimized stability and resistance to UV degradation. For medium-term outdoor applications.

Printing Techniques
Gloss colors, other than metallics, are thermotransfer compatible

Thickness
(without protective paper and adhesive) 2.5 mil

Dimensional Stability
(FINAT-TM 14) adhered to steel, no shrinkage in cross direction, in length <.016"

Temperature Resistance
adhered to aluminum, -40F to +176F no variation

Adhesive Power
(FINAT-TM 1, after 24 h, stainless steel, average) 4.1 lb/in

Outdoor Durability
(based on vertical surface exposure) 6 years, 4 years metallic, 3 years brilliant blue

Shelf Life
(68 F/50% relative humidity) 2 years

Seawaterability
(DIN 50 021) adhered to aluminum, no variation after 100 hours/73F

Elongation at break (across)
(DIN EN ISO 527) min. 150%

Elongation at break (along)
(DIN EN ISO 527) min. 130%

Tensile Strength (across)
(DIN EN ISO 527) min. 19 MPa

Tensile Strength (along)
(DIN EN ISO 527) min. 19 MPa

Resistance to solvents and chemicals
After 72 h adhered to aluminum at room temperature, resistant to most oils and greases, aliphatic solvents, weak acids, salts and alkalis.

Minimum application temperature
+46 F

Surface finish
high gloss, matte (black & white only)

Number of Colors
59 (Not including transparent)
