This is only a cutter and does not include a stand.

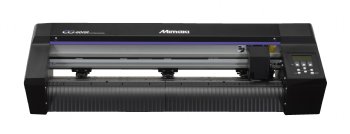

The Mimaki CG-AR vinyl cutter is a top-of-the-line cutting solution for sign, graphics, and packaging professionals. This versatile, high-quality cutter offers fast and precise cutting for various materials, including vinyl, HTV, paper, and cardstock. With its advanced continuous registration mark detection technology, the Mimaki CG-AR plotter offers unmatched accuracy and ease of use. It is the perfect tool for creating stunning and intricate print and cut designs.
Whether working on a small project or a large-scale production, the Mimaki CG-AR's speed and efficiency will help you get the job done quickly and easily. And with its intuitive software and user-friendly interface, even beginners can easily create professional-quality designs. So, if you're looking for a cutting-edge cutting solution that offers unmatched performance and versatility, look no further than the Mimaki CG-AR vinyl cutting machine.
- This versatile cutting machine is available in 29" and 61"
- Cut pressure of 550 g, which is the highest in the entry class of vinyl cutters.
- Continuous crop mark detection for contour cutting.
- Equipped with an ID cut function for efficient print & cut.
- Half-cut function for easier handling.
- This cutter is fast and flexible, with three selectable job speeds and the ability to load media from the front or back.
- Remote event notification function keeps you informed even when you're away from the machine.
- The Mimaki CG-AR Series is the perfect companion for any Mimaki roll-to-roll printer.
- FineCut9 and SimplePop software are included.
- CG60AR & Stand – Craft & Packaging Bundle, Sure Cuts A Lot software is included.
The Mimaki CG-AR vinyl cutting plotter is a versatile, high-quality cutting solution offering efficient cutting for several medias. Its speed and accuracy make it popular among sign, graphics, and packaging professionals.
For more info visit Mimaki here
| Type | Roll-based cutting plotter |
| Maximum Media Width | CG-60AR: 29.1" (740 mm) CG-130AR: 61" (1550 mm) |
| Cutting Width | CG-60AR: 23.9" (600 mm)
CG-130AR: 53.9" (1370 mm) |
| Maximum Media Thickness | Recommended sheets up to 0.01" (.25mm) including laminate and liner; Up to 0.04" (1mm) max (results may vary) |
| Maximum Cut Speed | 28.7"/s (73 cm/s) |
| Moving Speed Second | 40.5"/s (103 cm/s) |
| Maximum Cut Pressure (Metric grams) | 550g |
| Adjustable Speed Range | 1-10cm/s: 1cm/s step adjustment
1-73cm/s: 5cm/s step adjustment |
| Cutter Types | Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen, Cutter heavy paper, Creasing Tool |
| Mechanical Resolution | X direction: 2.5 μm; Y direction 5 μm |
| Program Steps | 25 μm or 10 μm (MGL-IIc); 100 μm, 50 μm (MGL-Ic1) |
| Repeatability | +/- 0.2 mm / 2 M |
| Downforce Pressure | Cutter: 10-20g (2g step), 20-100g (5g step), 100-550g (10g step)
Pen: 10-20g (2g step), 20-100g (5g step), 100-150g (10g step) |
| Command | MGL-IIc, MGL-Ic1 |
| Interface | USB, RS-232C, Ethernet |
| Receive Buffer | 27MB standard, 17MB when sorting |
| Power Supply | AC 100 V - 240 V 1A 50/60Hz |
| Power Consumption | 168W or less | 228W or less | 228W or less |
| Operational Environment | Temperature: 5-35 degC (41-95 degF),
Humidity: 35-75 ％ Rh (Non-condensing) |
| Dimensions (W x D x H) | CG-60AR: 1,030 mm x 287 mm x 335 mm (40.6 in x 11.3 in x 13.2 in) CG-130AR: 1,830 mm x 580 mm x 1,150 mm (72.0 in x 22.8 in x 45.3 in) |
| Weight | CG-60AR: 37.5 lbs. (17 kg)
CG-130AR: 94.8 lbs. (43 kg) |
This is only a cutter and does not include a stand.
