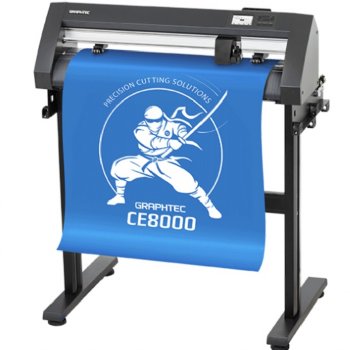

Graphtec Vinyl Cutter CE8000-60 24" with Stand

Graphtec Vinyl Cutter CE8000-60 24" with Stand
Graphtec Vinyl Cutter CE8000-60 24" with Stand
SKU: CE8000-60
Average Ratings: votesliked this product (2 votes)
The Graphtec CE8000-60 vinyl cutter is ideal for professionals who desire accuracy and efficiency. This plotter is perfect for cutting various materials, including vinyl, heat transfer vinyl, and cardstock. With its advanced features, like automatic registration mark sensing for contour cutting and a servo motor, this vinyl cutter is among the best in the market. It is suitable for small business owners and professional designers alike. Experience the unbeatable quality and performance of Graphtec.
You can earn 1895 SIGN BUCKS on this product!
Price: $1,895.00
Product Details


Graphtec CE8000 Series is the go-to solution for boosting production efficiency for Signage and Vinyl Graphics, DTF Apparel, PRINT & CUT, POP & Packaging, Automotive Markets, and more. Compared to its predecessor, the CE7000, the CE8000 boasts Enhanced Rigidity for better feeding and cutting performance. New Wireless LAN capability adds convenience and flexibility, allowing seamless connectivity in various work settings. Plus, it's equipped with the reliable Registration Mark Sensing System (ARMS) carried over from the CE7000 for precise operation. Supercharge your Production Capabilities with the Graphtec CE8000 Series, the Perfect Solution for Streamlined Workflows with Exceptional Results.

New Feature Highlights:

  • New Control Panel

A new touch panel with mechanical keys gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.

  • New Wireless LAN Module

The CE8000 includes a wireless LAN connection option which improves flexibility of installation locations.

  • New Tool Holder

Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.

Other Feathures Include:

  • Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.
  • Completion and Error Notifications can be sent to to users by e-mail
  • The CE8000 internal fan automatically turns on as sensors recognize media to support feeding
  • Tool compartment now has a magneticbase making it easy to move location and allows option to remove if needed.


For more info visit Graphtec here

ItemCE8000-40CE8000-60CE8000-130
ConfigurationGrit roller with digital servo drive system
Maximum cutting area (W x L)

15" x 164'

24" x 164'

50" x 164'

Cutting area of guaranteed accuracy

14" x 79"

23” × 79” / 23”× 16.4’ *1 / *250”×79” / 49”×16.4’ *1 / *2
Mountable media width2"
19"
2"
30"
2"
54"
Number of push rollers2 rollers3 rollers
Maximum cutting speed24"/s, in all directions36"/s, at 45º direction39"/s, at 45º direction
Maximum accelerationMax. 21.2 m/s2 (2.2G) at 45º direction45.60' (13.9 m/s2), at 45º direction
Maximum cutting force4.41 N (450 gf)
Minimum character sizeApprox. 5 mm (0.016") alphanumeric (depending on character font and type of media)
Programmable resolutionGP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Repeat-abilityMax. 0.1 mm in plot up to 2 m (*1)
Mountable number of tools1 tool
Blade typeSupersteel
Pen typeOil-based ballpoint, Water-based fiber-tip pen
Media typeSelf-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
InterfaceUSB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
Buffer memory2 MB
Command setsGP-GL / HP-GL™ (Set by command or auto-detect)
DisplayTouch Panel Screen (240-dot x 128-dot), supports 10 languages
Registration Mark
Sensing System
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
Alignment accuracyMaximum 0.3 mm with printed image (when reading specified registration marks)
Power source100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption120 VA
Operating environment10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)Approx. 26.65" x 17.76" x 10.5"Approx. 35.5" x 23" x 42.4"Approx. 65" x 32" x 42.3"
Weight (Approx.)24.25 lbs (11kg)46.3 lbs (21kg)106 lbs (40kg)
Compatible OS (*2)Windows 11 /10 / 8.1 / 64-bit editions
Mac OS 10.2 (Sierra) to 13 (Ventura)
Included software (download)Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
Compatibility StandardsSafetyPSE, UL/cUL, CE mark
EMCVCCI Class A, FCC Class A, CE mark

Product Reviews
Average Ratings: 100% liked this product100% liked this product (1 votes)
Rate this product: Like it  Like it Don't like it  Don't like it

Why didn’t I order this sooner?

"Why didn’t I order this sooner?"

Tiffany D. on 1/21/2024 1:07:52 PM

Comments: Love this machine! It cuts adhesive vinyl designs so fast and efficiently. The cuts are clean, crisp, and easy to weed. Building the stand was a breeze and the machine set up was fairly easy. I recommend watching some set up tutorials on YouTube beforehand. This helped me skip over a lot of the usual trial and error stuff. Within a week of receiving this one, I ordered a second one to replace the other machine in my shop. I am so pleased with how much time and hassle this machine has saved me co... More details

Graphtec CE

"Graphtec CE"

Scott on 1/19/2024 8:11:06 PM

Comments: This is my first vinyl cutter and it has been great. I’m so glad I didn’t buy a cheaper cutter because this is top notch.
