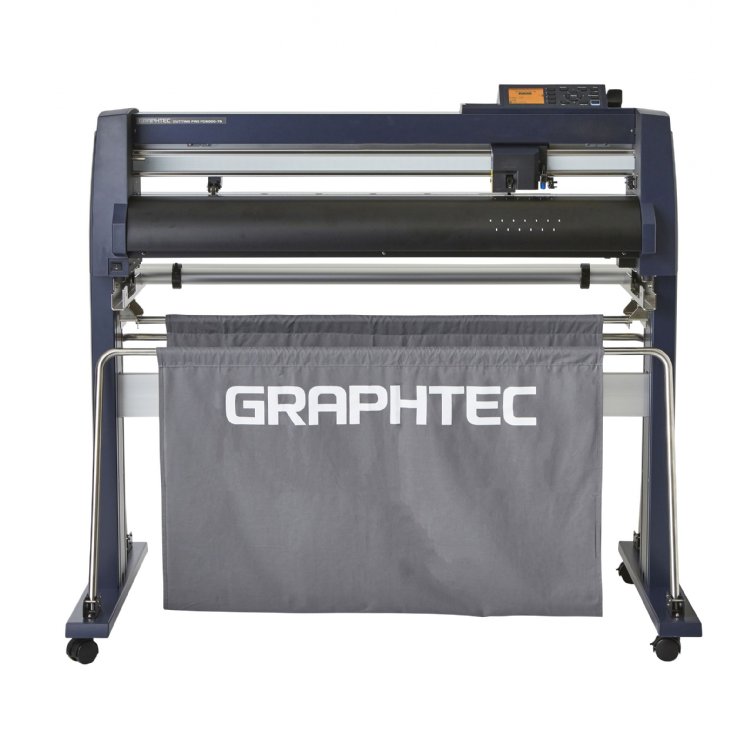

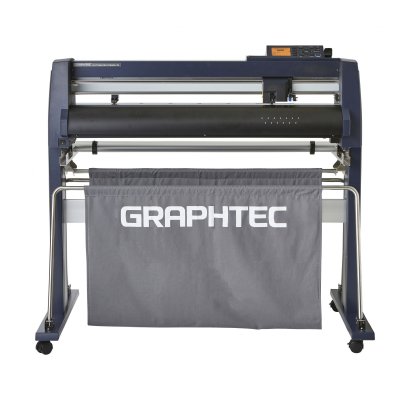

| Model | FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
|---|
| CPU | 32-bit CPU |
| Configuration | Grit rolling plotter |
| Drive method | Digital servo drive |
| Max. cutting speed | 58.5 inches per second (45 degree direction) 41.3 (axis direction) |
| Cutting force | Max. 600 gf in 48 steps |
| Axial acceleration | Max. 39.2 m/s2 (4 G) in 8 steps |
| Max. cutting area (W x L) (*1) | 30 in x 164 ft 762 mm x 50 m | 42 in x 164 ft 1067 mm x 50 m | 54 in x 164 ft 1372 mm x 50 m | 64 in x 164 ft 1626 mm x 50 m |
| Guaranteed precision cutting area (*1) | 29.21 in x 50 ft | 41 in x 32 ft, 35.2 in x 50 ft | 53 in x 32 ft, 35.2 in x 50 ft | 63 in x 32 ft, 35.2 in x 50 ft |
| Mountable media width(*2) | Min. 1.96 in
Max. 36.22 in | Min. 1.96 in
Max. 48.19 in | Min. 1.96 in
Max. 60.20 in | Min. 1.96 in
Max. 72.83 in |
| Max. cross cut width | 30 in | 42 in | 54 in | 64 in |
| Number of push rollers | 2 rollers | 3 rollers | 4 rollers | 4 rollers |
| Compatible roll media diameter | Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed) |
| Mechanical resolution | 0.005 mm |
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm |
| Distance accuracy (*2) | Max. 0.1 mm or 0.1 % of plotted length |
| Repeatability (*2) | Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media) |
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and media) |
| Mountable number of tools | 1 tool (cutting blade, plotting pen or pouncing tool) in standard;
2 tools (cutting blade and plotting pen) when second penholder (optional) is installed |
| Blade types | Supersteel (0.9 mm or 1.5 mm diameter) |
| Pen types | Water-based fiber-tip pen, Oil-based ballpoint pen |
| Pouncing tool type | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) |
| Media types (*3) | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,
Sandblast resist rubber up to 1 mm thick |
| Compatible paper for pouncing | Regular paper from 0.06 to 0.13 mm thick |
| Cross-cutter | Built into the tool carriage |
| Perforation cutting | Supported (performed by force control) |
| Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX |
| Buffer memory | 2 MB |
| Command sets | GP-GL / HP-GL emulation (Set by menu or command, and selects from GP-GL, HP-GL, or Auto select) |
| Condition settings | Dual configuration (save two (2) user settings with eight (8) separate condition settings per user) |
| Display | Graphic type LCD (3.7-inch, backlight) |
| Power source | 100 V to 240 V AC, 50 / 60 Hz |
| Power consumption | AC100-240 V, 50/60 Hz |
| Operating environment | 50 to 95 deg F, 35 to 75 % R.H. (non-condensing) |
| Guaranteed accuracy environment | 60 to 89 deg F, 35 to 70 % R.H. (non-condensing) |
External dimensions
(W x D x H) | Approx. 50" x 28" x 48" (1270 x 711 x 1219 mm) | Approx. 61.8" x 28" x 48" (1570 x 715 x 1219 mm) | Approx. 73.6" x 28" x 48" (1870 x 711 x 1219 mm) | Approx. 84" x 28" x 48" (2130 x 711 x 1219 mm) |
| Weight (*8) | 108 lbs. | 123 lbs. | 141 lbs.
178 lbs. /w take-up | 154 lbs.
195 lbs. /w take-up |
| Included software (*6) | Windows driver, Plotter controller, Graphtec Pro Studio (*5),
Cutting Master 4, Graphtec Studio for Mac |
| Compatible OS (*5) | Windows 10 / 8.1 / 7
Mac OS X 10.6 to 10.11
Mac OS 10.12 to 1.14
Graphtec Studio: 10.6 to 10.14
Cutting Master 4: 10.7-10.14 |
| Safety | PSE, UL/cUL, CE mark) |
| EMC | VCCI Class A, FCC Class A, CE mark |
